Details
Lightweight aluminum perfection
Every detail of the Emonda line serves the same audacious goal: to create the lightest line of production road bikes ever offered.
Built with unmatched attention to balance and handling, Emonda ALR offers elegance on a new level, far surpassing the lightness and performance of many of its carbon competitors.
- Redefines what's possible for weight and ride performance
- 300 Series Alpha Aluminum for ultimate light weight
- Perfectly balanced, ultra-responsive ride feel
- The world's lightest road line has the world's best warranty
Pedals sold separately
Specs
| Frame | Ultralight 300 Series Alpha Aluminum, Invisible Weld Technology, E2 tapered head tube, DuoTrap S compatible, BB86.5 |
|---|---|
| Fork | Emonda carbon, carbon E2 steerer |
| Headset | Integrated, cartridge bearing, sealed, 1-1/8-inch top, 1.5-inch bottom |
| Rims/Wheels | Bontrager Aeolus Comp Tubeless Ready |
| Tires | Bontrager R2 Hard-Case Lite, 700x 25c |
| Crankset | Shimano Ultegra |
| Chainrings | 50/34 |
| Bottom Bracket | Press Fit BB86.5 |
| Chain | Shimano Ultegra |
| Front Derailleur | Shimano Ultegra, braze-on |
| Rear Derailleur | Shimano Ultegra |
| Cassette/Rear Cogs | Shimano Ultegra, 11-28, 11 speed |
| Shifters | Shimano Ultegra, 11 speed |
| Handlebars | Bontrager Race VR-C, 31.8mm |
| Tape/Grips | Bontrager tape |
| Stem | Bontrager Pro, 31.8mm, 7 degree, w/computer & light mounts |
| Brake Levers | Shimano Ultegra |
| Brakes | Shimano Ultegra |
| Saddle | Bontrager Montrose Comp, chromoly rails |
| Seat Post | Bontrager carbon, 2-bolt head, 27.2mm, 8mm offset |
* Subject to change without notice.
Videos

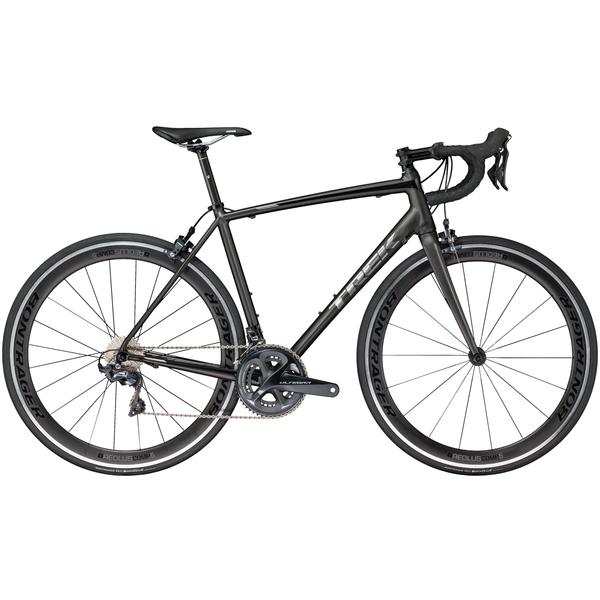

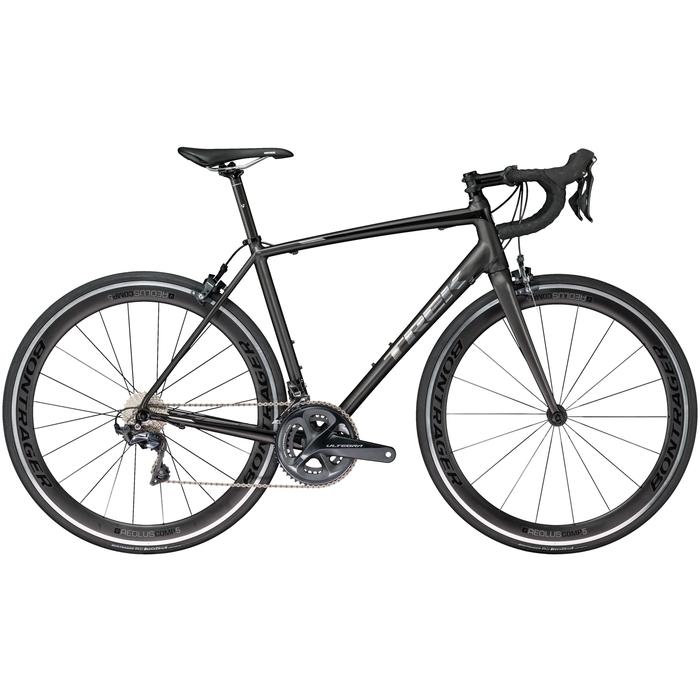

Trek Emonda ALR
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Matte Dnister Black / 50cm | 601479700509 | 553871 | |
| Matte Dnister Black / 52cm | 601479700516 | 553872 | 30316 |
| Matte Dnister Black / 54cm | 601479700523 | 553873 | 30148 |
| Matte Dnister Black / 56cm | 601479700530 | 553874 | |
| Matte Dnister Black / 58cm | 601479700547 | 553875 | 29257 |
| Matte Dnister Black / 60cm | 601479700554 | 553876 | |
| Matte Dnister Black / 62cm | 601479700561 | 553877 |
