Details

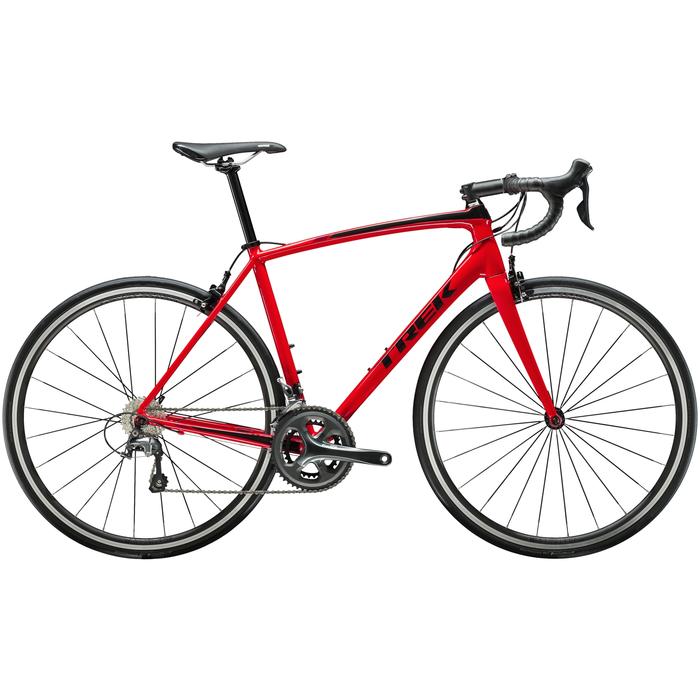

Emonda ALR 4 is a lightweight aluminum road bike at an incredible value. But don't mistake it for the kind of ride you'll get from value-minded competitors at this price. Shaped tubes, Invisible Weld Technology, and a lightweight frame that's perfect for new riders and racers alike give Emonda ALR the looks and handling of carbon at the price of alloy.
It's right for you if...
You're a value-minded rider looking for a lightweight race bike, a whole lot of performance for your dollar, and a quality ride you won't immediately outgrow.
The tech you get
Emonda ALR 4 is more than the sum of its parts. Yes, it has a full Shimano Tiagra groupset, 20 speeds, a carbon fork, powerful direct mount rim brakes, and a lightweight 300 Series Alpha Aluminum frame with shaped tubes—but its real genius is in its handling and ride quality.
The final word
Emonda ALR 4 is the most affordable Emonda in the family, but it handles like a far more expensive bike and has the looks to match. It's an extremely capable race bike at a great value.
Why you'll love it
- Carbon looks and handling, alloy price point: Invisible Weld Technology and shaped tubes for sleek looks, light weight, and incredible handling
- It climbs fast, corners on rails, and descends with confidence
- It gives you room to grow, with dependable components and lightweight performance at a great value
- It shares the geometry of our highest-end carbon Emonda race bikes, and it gives you a ride quality that stands up in every way to far more expensive carbon bikes
- Internal cable routing extends the life of your cables and adds to the bike's sleek look
Pedals sold separately
Specs
| Frame | Ultralight 300 Series Alpha Aluminum, Invisible Weld Technology, tapered head tube, BB86.5, direct mount rim brakes, internal cable routing, DuoTrap S compatible |
|---|---|
| Fork | Emonda carbon, tapered steerer, direct mount rim brakes |
| Headset | Integrated, cartridge bearing, sealed, 1-1/8-inch top, 1.5-inch bottom |
| Axles | QR |
| Rims/Wheels | Bontrager Affinity Tubeless Ready |
| Hubs | Alloy |
| Tires | Bontrager R1 Hard-Case Lite, 700x 25c |
| Crankset | Shimano Tiagra |
| Chainrings | 50/34 |
| Bottom Bracket | Press Fit BB86.5 |
| Chain | Shimano Tiagra |
| Front Derailleur | Shimano Tiagra, braze-on |
| Rear Derailleur | Shimano Tiagra |
| Cassette/Rear Cogs | Shimano Tiagra, 11-28, 10 speed |
| Shifters | Shimano Tiagra, 10 speed |
| Handlebars | Bontrager Comp VR-C, 31.8mm |
| Tape/Grips | Bontrager tape |
| Stem | Bontrager Elite, 31.8mm, 7 degree, w/computer & light mounts |
| Brakes | Tektro T731, direct mount |
| Pedals | Not included |
| Saddle | Bontrager Montrose Comp, chromoly rails |
| Seat Post | Bontrager alloy, 2-bolt head, 27.2mm, 8mm offset |
* Subject to change without notice.
Videos
Trek 2019 Emonda ALR
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Viper Red/Trek Black / 50cm | 601479888344 | 568782 |
| Viper Red/Trek Black / 54cm | 601479888368 | 568784 |
| Viper Red/Trek Black / 58cm | 601479888382 | 568786 |
